Create 3D glasses model in max part 3

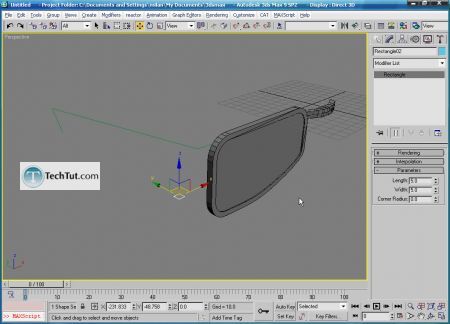

Because we need to use Boolean function for this purpose we need to make a box like shown.

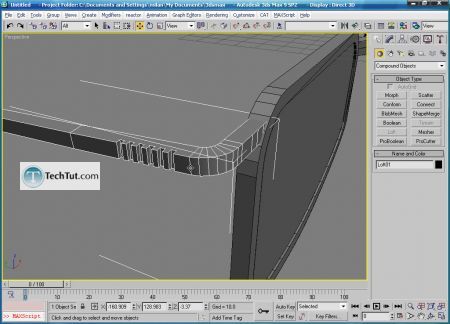

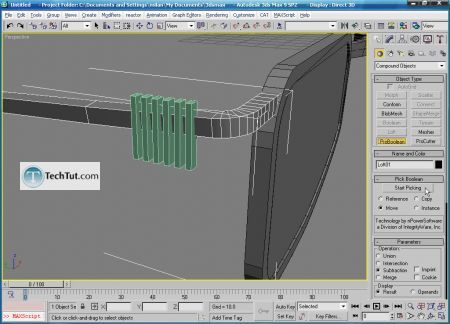

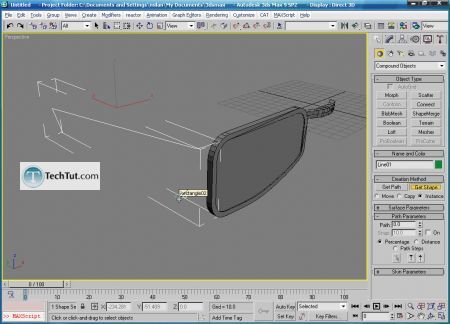

After that got to compound – pro boolean function and click on start picking.

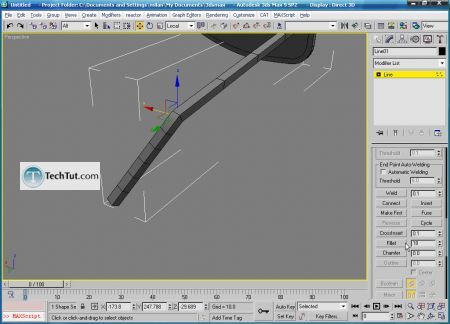

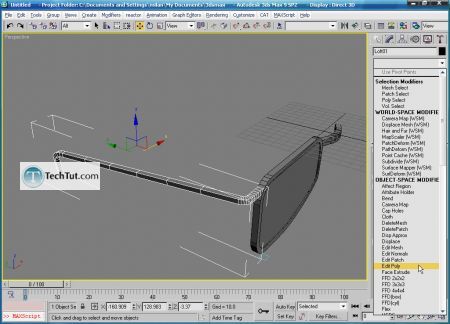

After that fillet the selected vertices, and apply edit poly modifier.

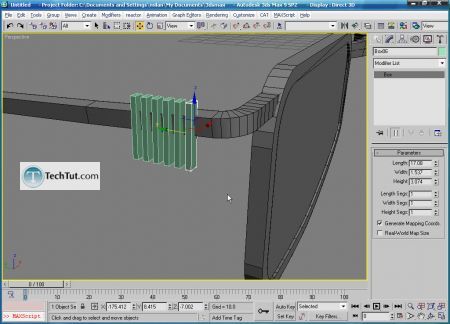

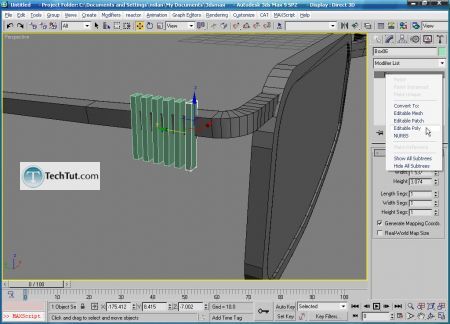

Create a box like shown, create a four copy’s of the same box and convert the first box into editable poly.

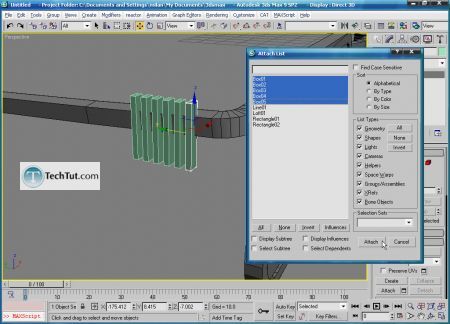

After that attach other tree boxes.









After that select the back of the glasses and do the same like before with pro boolean function.

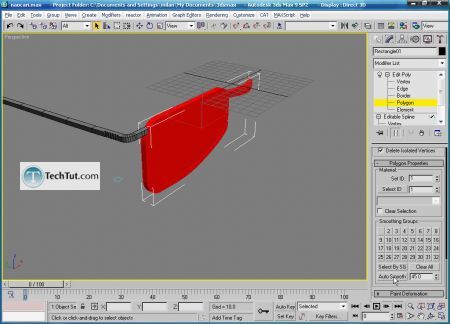

Now select the polygon to apply auto smooth to them.

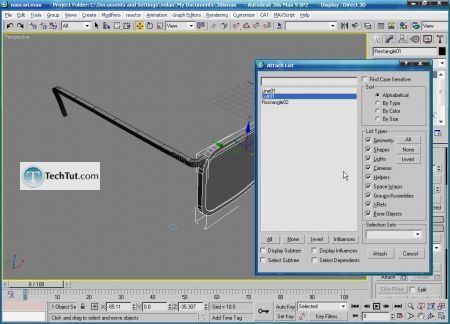

After that attach the back of the glasses to the front.
