Easy way of creating rubber tire
Author: TechTut.com
page: 1

Create rubber car tire part 1

This tutorial will show you how you can easily create rubber tire using 3D studio max.


In this tutorial will be explain how to create a tire for car.

First create cylinder.

Tutorial Create rubber car tire part 1 1

Move it to center. To center object in scene right click on move tool and change coordinates.

Tutorial Create rubber car tire part 1 2

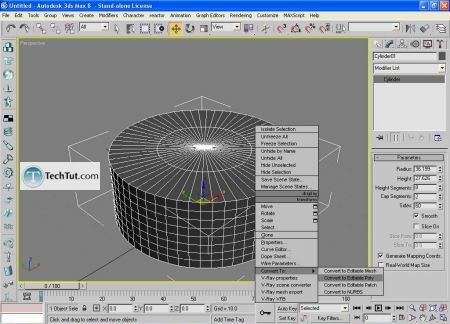

Right click on model/convert to/convert to editable poly.

Tutorial Create rubber car tire part 1 3



In editable poly menu you have edges, vertices, polygons. Chose polygons

Tutorial Create rubber car tire part 1 4

Select central polygons (on top and on bottom). Bridge them with bridge tool in “edit polygons’” menu.

Tutorial Create rubber car tire part 1 5

Scale a little selected polygons

Tutorial Create rubber car tire part 1 6

Now select a ring of polygons (on both sides).

Tutorial Create rubber car tire part 1 7

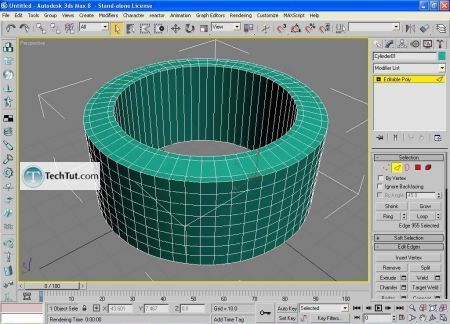

In editable poly menu click on inset. Scale little (to Z) polygons which are made with inset.

Tutorial Create rubber car tire part 1 8



Tutorial Create rubber car tire part 1 9

To make soften edges select border of tire. To do that select one edge and with ctrl pressed click several times on loop tool in Edit Edges menu.

Tutorial Create rubber car tire part 1 10

Tutorial Create rubber car tire part 1 11

Tutorial Create rubber car tire part 1 12

When select rings click on champfer.

Tutorial Create rubber car tire part 1 13

Select polygons like is selected on picture (when selecting to subtract something keep pressed Alt).

Tutorial Create rubber car tire part 1 14

Click inset and in inset window choose 'by polygon'.

Tutorial Create rubber car tire part 1 15




GO to: Page 1 : Create rubber car tire part 1
GO to: Page 2 : Create rubber car tire part 2
